Product Details
＋

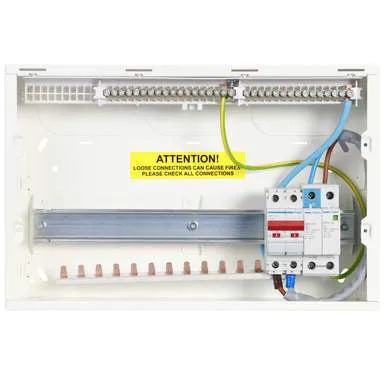

- Supplied with a full metal DIN rail, 100A switch disconnector incomer and a full complement of earth and neutral terminals along with marking labels, busbar and instructions

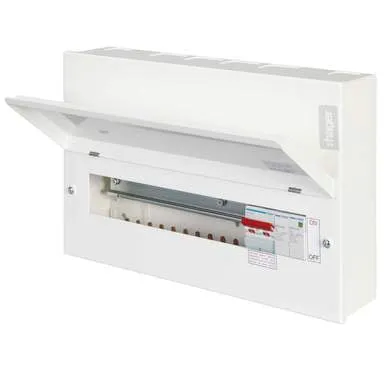

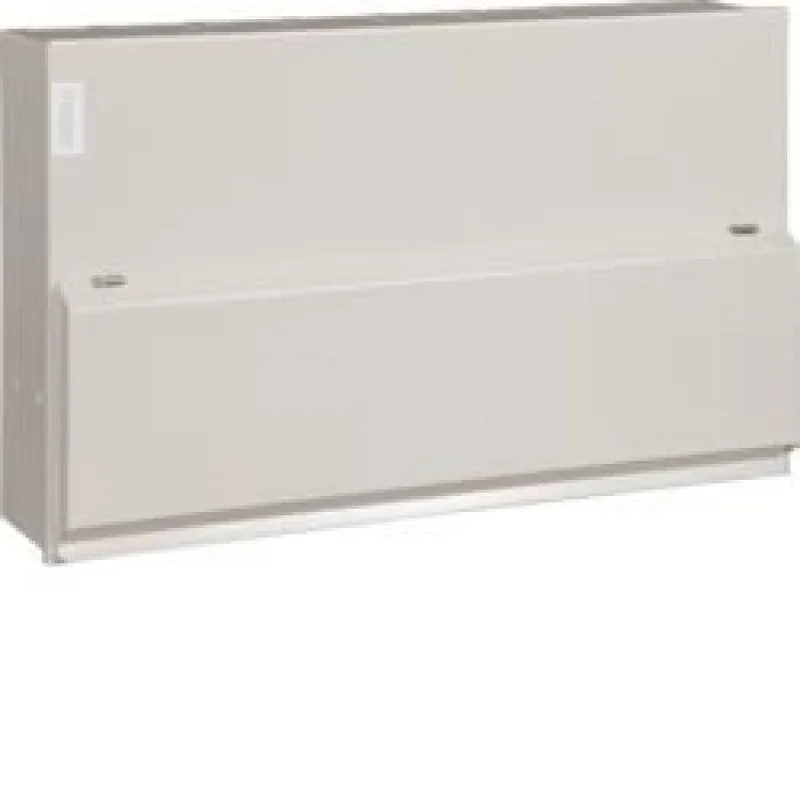

- Straight Mains Single Row Consumer Unit
- 12 Way Configuration
- Surge Protection Device. Type 2 SPD fitted
- Meter tail cable entry plate (VM04CE)
- Earth & Neutral Terminals
- Top, Rear & Bottom Knockouts
- 100A Switch Disconnector
- Recommended for use with TT systems when utilising RCBO on outgoing circuits
- Conforms to BS EN 61439-3 Including Annex ZB (16kA rating)
- Cable Entry : Round Knockouts
- Current Rating : 100A
- Dimensions (H)98.2 mm x (W)368.4 mm x (D)100 mm
- IP Rating : IP2XC
- Incoming Device : 100A Isolator
- Material : Steel
- Mounting : Surface
- Number of Modules : 16
- Number of Outgoing Ways : 12
- Product Range Design : 10
- Standards : BS EN 61439-3
- Supplied With : Type 2 SPD and Round Knockouts
- Surge Protection Fitted : Yes
- Voltage Rating 230V
- Weight : 4kg
